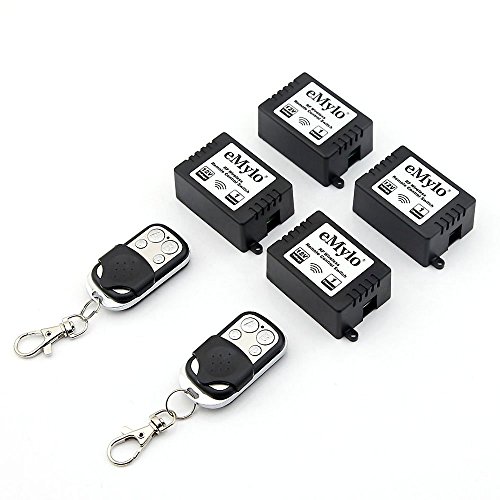

eMylo RF Wireless Transmitter DC 12V 4X 1 Channel Remote Control light Switch Remote Control Transmitter 433Mhz
Price Rs. 15,516.00 (not confirmed)
Product Code:
B01A6VOH9W
Brand:
Weight:
0.44 lbs
Availability: In stock in the US ✔
Import from USA in Pakistan ✔
Important: Delivery of this product will take 3 to 4 weeks.
⚠️️Please Read Before Ordering
- This product price is not confirmed on our website because Amazon prices may change at any time, and currency exchange rates fluctuate regularly.
- Before confirming any order, our sales representative will share the final price, including all taxes, customs duties, government charges, freight, and local shipping. You will receive the complete doorstep price. Also salesperson will confirm product is in stock or not
- Before ordering any product, please make sure the product technically fulfills your need and contains no illegal ingredients (e.g., wine, alcohol, pig, pork, animal-based gelatin, etc.) or contents.
- In most cases, our product delivery time is 10 to 20 working days. However, in special circumstances such as weather conditions or other unforeseen delays, this timeframe may vary.
- We are not technical persons. For technical support or manufacturer's warranty of the products found on shoppingbag.pk, you can contact directly with the original manufacturer or visit their website.
- We are your importer of goods from the USA, UK, China, Russia, etc., and will not provide any technical support, product warranty, or quality check.
- Our enlarged and enhanced product pictures may differ slightly from the original products. Also, read product reviews and ratings before buying.
- We require a 30% advance on the final price, and the remaining balance is payable at the time of delivery.
- We are assuming you have read our terms & conditions and agreed with them.
Product Detail
ReceiverInput Voltage: DC 12V
Operating Frequency: 433Mhz
Coding Way: Intelligent Learning
Output Type: Active output
Max load: 10A
Ambient TEMP: -30℃-70℃, Humidity<95%
Factory Default: Self-locking
Board Dim: 45x30.5x17mm
Case Dim: 60x38x13mm
Transmitter
Operating Voltage: 12V
Operating Frequency: 433Mhz
Vibration Resistance: 126
Chip Type: 2260/1527
Modulation: ASK (Stable, less interference)
Encode Type: Bonding pad welding code/group code
Battery Type: 12V 27A(not included)
Remote Distance: 20m (Theoretical value)
Ambient TEMP: -30℃-70℃, Humidity<95%
Product DIM: 54x30x13mm
Package Included:
2* Transmitter (Battery not included)
4* Receivers
1* English manual
Three modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-locking: press the one button, the reply turns on, press the button again, the reply turns off.
Interlocked: press one button,the relay turns on,press the next button,the relay turns off.
Steps:
Clear:
Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.
Choose the mode:
inching/momentary:release the button after the light flashes once.
Self-lock/latched:release the button after the light flashes twice.
Inter-lock/toggle:release the button after the light flashes three times.
Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.
Binding: ElectronicsBrand: eMylo®EAN: 0707581725239Label: eMyloManufacturer: eMyloModel: EBM114B3EMPN: EBM114B3EPackageQuantity: 1PartNumber: EBM114B3EProductGroup: Home ImprovementProductTypeName: SOUND_AND_RECORDING_EQUIPMENTPublisher: eMyloStudio: eMyloTitle: eMylo RF Wireless Transmitter DC 12V 4X 1 Channel Remote Control light Switch Remote Control Transmitter 433MhzUPC: 707581725239
