Enerpac SCH-603H Single Acting Cylinder Pump Set RCH-603 Cylinder with P-80 Hand Pump
Price Rs. 1,793,525.00 (not confirmed)
Product Code:
B0063777ZK
Brand:
Weight:
111.00 lbs
Availability: In stock in the US ✔
Import from USA in Pakistan ✔
Important: Delivery of this product will take 3 to 4 weeks.
- This product price is not confirmed on our website because Amazon prices may change at any time, and currency exchange rates fluctuate regularly.
- Before confirming any order, our sales representative will share the final price, including all taxes, customs duties, government charges, freight, and local shipping. You will receive the complete doorstep price. Also salesperson will confirm product is in stock or not
- Before ordering any product, please make sure the product technically fulfills your need and contains no illegal ingredients (e.g., wine, alcohol, pig, pork, animal-based gelatin, etc.) or contents.
- In most cases, our product delivery time is 10 to 20 working days. However, in special circumstances such as weather conditions or other unforeseen delays, this timeframe may vary.
- We are not technical persons. For technical support or manufacturer's warranty of the products found on shoppingbag.pk, you can contact directly with the original manufacturer or visit their website.
- We are your importer of goods from the USA, UK, China, Russia, etc., and will not provide any technical support, product warranty, or quality check.
- Our enlarged and enhanced product pictures may differ slightly from the original products. Also, read product reviews and ratings before buying.
- We require a 30% advance on the final price, and the remaining balance is payable at the time of delivery.
- We are assuming you have read our terms & conditions and agreed with them.
Product Detail

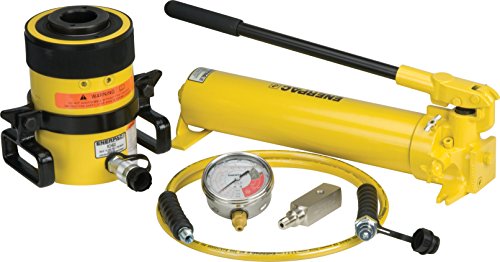

The Enerpac SCH-603H single-acting cylinder pump set includes the P-80 two-speed hydraulic hand pump and a RCH-603 sixty-ton capacity hollow plunger hydraulic cylinder for pushing and pulling in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. The P-80 hand pump has an internal pressure relief valve that protects against overload. The two-speed pump requires fewer handle strokes to move a load than a similarly rated single-speed pump, increasing productivity. The vent-free reservoir helps prevent oil from spilling and is for use in non-vented applications. The pump can be operated in either the horizontal or vertical position. The steel body resists corrosion and wear, and the chrome-plated plunger and wiper system help extend the life of the pump. An ergonomically designed grip helps reduce operator hand fatigue, and the pump has a built-in carrying handle for transport. The set also includes a 6’ safety hose, a 65-ton hydraulic force and pressure gauge, and 1/4" gauge adaptor to connect to the pump’s 3/8" National Pipe Taper (NPT) threads port.
Specifications
| Set capacity | 60 ton |
| Cylinder | 3 inches stroke 9.75 inches collapsed height |
| Pump | 500 pounds per square inch (psi) first stage maximum operating pressure 10,000 psi second stage maximum operating pressure 1.0 cubic inch per stroke first stage maximum oil displacement 0.15 cubic inch per stroke second stage maximum oil displacement 134 cubic inches usable oil capacity 1.0 inch piston stroke 77 lb. maximum handle effort 23.6lb. weight 7.65 x 20.12 x 5.91 inches (H x W x D) dimensions |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.
Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.
Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
What’s in the Box?
- P-80 hydraulic hand pump
- RCH-603 hydraulic cylinder
- HC-7206 safety hose (6’ length)
- GF-813P 65-ton hydraulic force and pressure gauge
- GA-3 1/4†gauge adaptor
