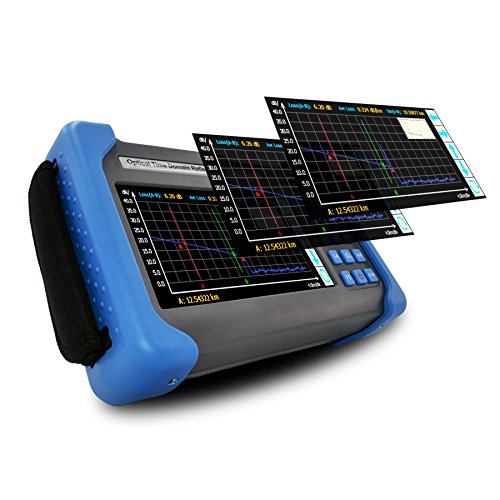

SPEEDWOLF 1310/1550nm 32/30dB OTDR 7inch Screen 120KM(74.5mi) FTTH Fiber Optic Tester with VFL and Power Meter
Price Rs.559,541.00
Product Code:
B06Y1YDWZL
Important: Delivery of this product will take 3 to 4 weeks.
⚠️️ Shoppingbag.pk's Advice
- Before ordering any product, please make sure the product technically fulfills your need and contains no illegal ingredients (e.g., wine, alcohol, pig, pork, animal-based gelatin, etc.) or contents.
- For technical support or manufacturer's warranty of the products found on shoppingbag.pk, you can contact directly with the original manufacturer or visit their website.
- We are your importer of goods from the USA, UK, China, Russia, etc., and will not provide any technical support, product warranty, or quality check.
- Our enlarged and enhanced product pictures may differ slightly from the original products. Also, read product reviews and ratings before buying.
- Since dollar rate keeps fluctuating, prices are not confirmed on our website.
- We take 30% advance of the total value and the remaining payment is done at the time of delivery.
- We are assuming you have read our terms and conditions and agreed with them.
Product Detail
Description
OP-OTDR32F-T4 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; OP-OTDR32F-T4 is specially designed for that kind of application. It s economic, having outstanding performance.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, OP-OTDR32F-T4 can be your best assistant.
> Interface:1×RJ45 port, 3×USB port
> Power:DC 10V,AC100V-240V/50~60Hz
> Battery:7.4V(dc)/4.4AhLi-ion battery
> Operating time: 12h,Telcordia GR-196-CORE
> Charging time: <4h
> Data Storage:Internal memory: 4GB
> Language:User selectable (English, Simplified Chinese)
> Proof: IP65 (IEC60529)
> Accessories:Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
> FC/UPC and SC/UPC adapter(Default);FC/APC and SC/APC,Bare fiber adapter(Please contact with Seller)
> Testing Wavelength (MM: ±20nm, SM: ±10nm):1310+1550
> Dynamic Range:32dB+30dB
> Event Dead-zone :0.8m
> Attenuation Dead-zone:8/8
> Pulse Width:Single mode:5/10/20/50/100/200/500ns,1/2/5/10/20μs
> Testing Distance:SM:100m, 500m,2/5/ 10/20/40/80/120/160/240km
> Sampling Resolution:>5cm
> Sampling Point:Max128,000 points
> Linearity:≤0.05dB/dB
> Distance Resolution:0.01m
> Distance Accuracy :±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Brand: SPEEDWOLFColor: OTDR(OP-OTDR32F-T4)Label: SPEEDWOLFManufacturer: SPEEDWOLFMPN: OP-OTDR32F-T4PackageQuantity: 1PartNumber: OP-OTDR32F-T4ProductGroup: Home ImprovementProductTypeName: HOME_ORGANIZERS_AND_STORAGEPublisher: SPEEDWOLFStudio: SPEEDWOLFTitle: SPEEDWOLF 1310/1550nm 32/30dB OTDR 7inch Screen 120KM(74.5mi) FTTH Fiber Optic Tester with VFL and Power Meter
