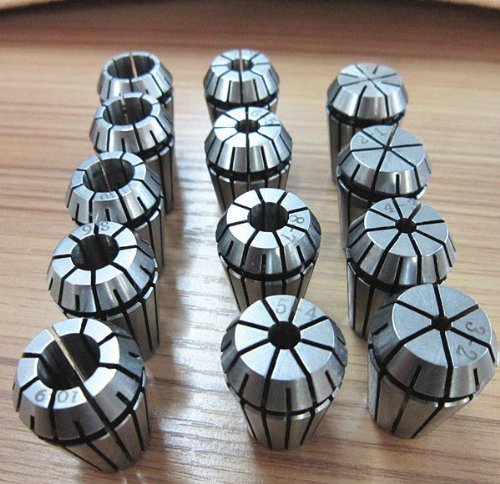

ZJchao ER20 Precision SPRING COLLET set 13 pcs (1mm-13mm) CNC MILLING LATHE CHUCK TOOL
Price Rs.18,311.00
Product Code:
B00HPQJZ08
Important: Delivery of this product will take 3 to 4 weeks.
⚠️️ Shoppingbag.pk's Advice
- Before ordering any product, please make sure the product technically fulfills your need and contains no illegal ingredients (e.g., wine, alcohol, pig, pork, animal-based gelatin, etc.) or contents.
- For technical support or manufacturer's warranty of the products found on shoppingbag.pk, you can contact directly with the original manufacturer or visit their website.
- We are your importer of goods from the USA, UK, China, Russia, etc., and will not provide any technical support, product warranty, or quality check.
- Our enlarged and enhanced product pictures may differ slightly from the original products. Also, read product reviews and ratings before buying.
- Since dollar rate keeps fluctuating, prices are not confirmed on our website.
- We take 30% advance of the total value and the remaining payment is done at the time of delivery.
- We are assuming you have read our terms and conditions and agreed with them.
Product Detail
The correct methods of mounting the collet nut:1. Put the chuck into the pressure cap, gently turn the clamp spring, when eccentric portion of the pressure cap recessed clamp spring groove. Along the arrow direction and use equal force to push clamp spring, can mount pressure cap.
2. Put the clamp spring and cap all together installed on the chuck body or spindle. Insert into the clamping hole after wipe the cylindrical shank, use a wrench to tighten the pressure cap, until clip firmly the tool before use.
(Note : Avoid fastening pressure cap that not installed tool, to avoid damage the clamp spring)
3. Use a wrench to loosen the pressure cap and took out the chuck or tool, remove the tool. Along the direction of the arrow push out the clamp spring. Then according to need replace other clamp spring.
Specification:
Color/Style: ER20
Material: High Grade 65Mn spring steel
Total height: 31.5mm/1.24inch
Outer diameter(Max): 21mm/0.83inch
Run-Out Tolerance: <0.008mm
Gripping Range: 1MM to 13MM (1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)
Fits metric shank size(s): For example,1mm Collet Fits 1mm metric shank,2mm Collet Fits 2mm metric shank
Package Includes:
1 Set(13pcs) x ER20 Collets Binding: Misc.Brand: ZJchaoEAN: 0520041623148Label: ZJchaoManufacturer: ZJchaoModel: zjchao872MPN: zjchao872PackageQuantity: 1PartNumber: zjchao872ProductGroup: Home ImprovementProductTypeName: TOOLSPublisher: ZJchaoSize: ER20 13 pcsStudio: ZJchaoTitle: ZJchao ER20 Precision SPRING COLLET set 13 pcs (1mm-13mm) CNC MILLING LATHE CHUCK TOOLUPC: 520041623148
