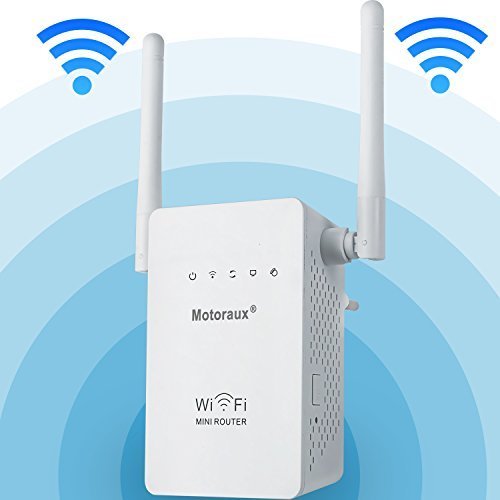

Motoraux Wireless-N Mini Wi-Fi Range Extender Time for Q&A Q: Why doesn t it boost the speed of my wifi?
A: Please note that wifi extender only does extend the wifi signal of your original router and theoretically has no influence on the speed of the original network. That is, it extends signals but not the speed.
Q: Why doesn t it extend the original signals?
A: 1. Please place it at the places where signals are weaker than anywhere.
2. At the last step of setting up, you should connect "Wireless-N" instead of the original network name, and then enter the password of your router s network to complete connection.
FIVE OPERATION MODES 1.Wireless Router Mode (Default) - Creates an instant private wireless network and share Internet to multiple Wi-Fi devices, which is suitable for most hotel and home network.
2.Repeater Mode - Extend existing Wi-Fi, improving signal strength and maximizing coverage.
3.Access Point Mode - Creates a wireless network for Wi-Fi devices.
4.WISP Client Router Mode - Simultaneous Wireless ISP access and sharing.
5.Client Mode (TV/Game Console) - Gives wired-only devices access to an existing Wi-Fi networks.
SPECIFICATION Wireless Standards - IEEE 802.11n , E 802.11g , IEEE 802.11b , IEEE 802.3 , IEEE 802.3u
Interface - 10/100M LAN x 1 , 10/100M WAN x 1
Frequency Range (GHz) - 2.4-2.4835GHz
Wireless Link Rate - Up to 300Mbps
LEDs - Power , WIFI , WPS , LAN , WAN
Button - WPS button , Reset button
Temperature - Operating Temperature: 0℃~40℃ ; Storage Temperature: -40℃~70℃
Humidity - Operating Humidity: 10%~90% non-condensing ; Storage Humidity: 5%~90% non-condensing
